WP70 Installation Guide has been attached.

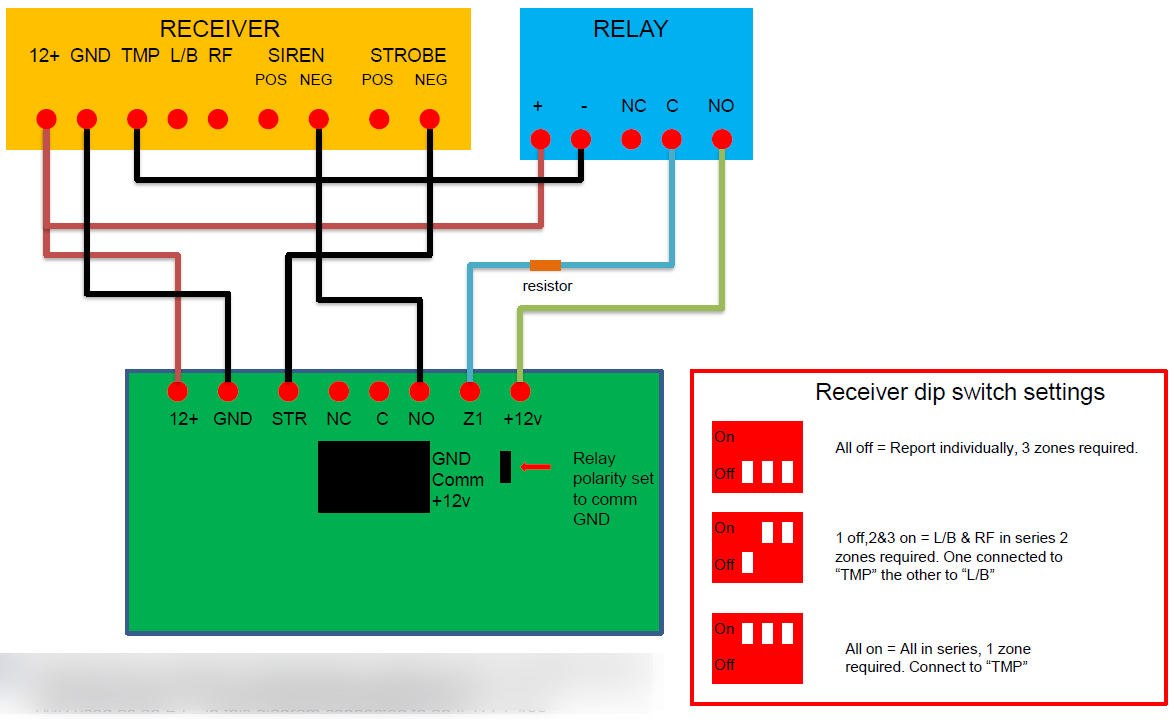

Note:
- Connect SIREN on RECEIVER to Internal Piezo Output on Alarm Panel not to Horn Speaker Output;
- Relay only used if TMP, L/B, RF outputs are being used;
- TMP used as an example in this diagram connected to an ICP-CC488.
