We've updated the default output assignments to better suit how most systems are being used today.
The Internal Siren is NOT connected to the Output Relay anymore.
| Output | OLD Default | NEW Default |
| Output 1 | External Siren | External Siren |
| Output 2 | Smoke Alarm Reset | Internal Siren |
| Output 3 | Strobe | Strobe |
| Output 4 (Relay Output) | Internal Siren | Keyfob Button 1 |
Additionally, ALL OUTPUTS WILL SHOW ON RSC+ by default.

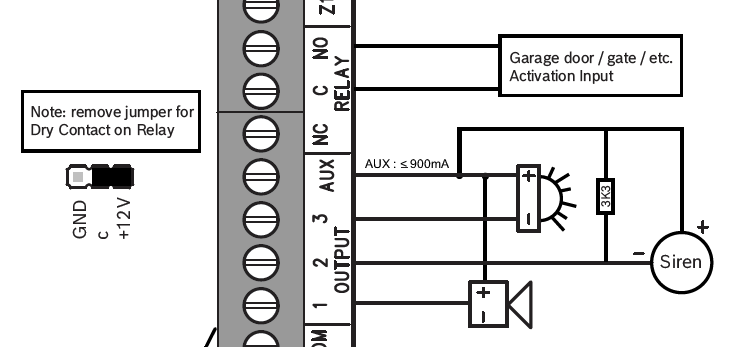

This means Output 4/Relay Output will work on keyfobs and the RSC+ app by default.
The original defaults were set up around how systems were typically installed 20+ years ago. This has been done to accommodate for the demand for keyfob/RSC+ operated outputs for garage doors and gates.
