Solution 16+/64 - Auto Arming an Area

Modified on Fri, 22 Jan, 2021 at 10:48 AM

Solution 16+ and Solution 64 can be configured to automatically arm and/or disarm an area automatically if required.


Procedure


(1) To setup an Auto Arming time, MENU 7-5-0 to select a schedule that is not being used, and program the schedule name to something convenient.

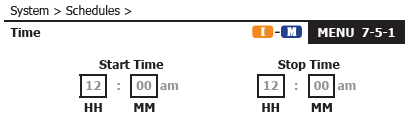

(2) MENU 7-5-1 Set the start time for the schedule to the arming time you require. The stop time should be set to 12:00am or --:-- am, which prevents the system from auto disarming.

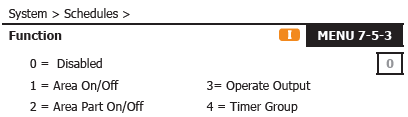

(3) Set the Schedule Function, MENU 7-5-3 to Area On/Off.


(4) Set the Schedule Index, MENU 7-5-4 to correspond to the area to operate. If an index of 0 is used then arming will occur for all areas.


(5) Finally select the days of the week you wish auto arming to occur in MENU7-5-2Press numbers [1] to [8] to enable/disable the days of the week that the schedule will operate.
