The following programming configuration can be used to allow a 4 button keyfob to be used to control a Roller Door on an
- CC488 Ultima (panel with Fuses)
- ICP-CC488 Ultima (panel with NO Fuses)
- Solution 3000
We can do similar programming to allow a 4 Button keyfob to Operate an Output on an
- Solution 16Plus
- Solution 16 ICON
- Solution 64
- Solution 6000
We can program what is effectively Button 3 and 4 on the fob
These are normally allocated as below:
- GREEN is BUTTON 3
- GOLD is BUTTON 4
Put in the following values for Output programming on a CC488 Ultima
Use the following Programming Locations

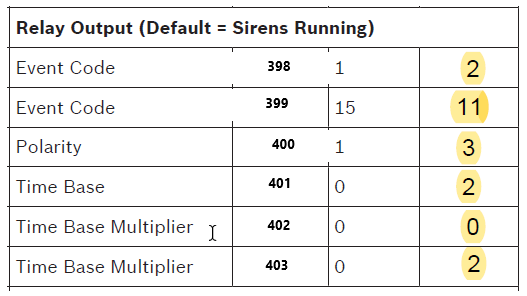

(Ref to Panel Quick Ref Guide:) This is the Onboard Relay Programming triggers output for 2 secs
Put in the following values for the output programming on a Bosch Solution ICP-CC488/3000:
Use the following Programming Locations

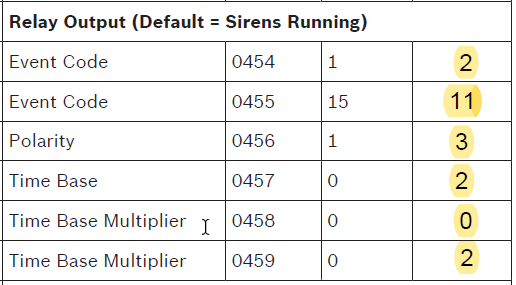

(Ref to Panel Quick Ref Guide:) This is the Onboard Relay Programming triggers output for 2 secs
On an Solution 3000 you could also program this operation to an Output working on an B308 Output Expander
Ref to Solution 3000 Quick Ref Guide for programming locations.
If you wished to instead use button 4 to operate the Output change to event code 2 12 and also ensure that button 4 to operate STAY Mode 1 is disabled in System Options 1 at following programming locations.
- For CC488 = Loc 439
- For ICP-CC488 = Loc 492
- For Sol 3000 = Loc 492
The values for output programming on a Bosch Solution 16Plus / Solution 16 ICON /64/6000 are:
Menu 411 Select Output: Event Type: 54 (Keyfob Function 2) or 53 (Keyfob Function 1)
Menu 412 Select Output : Event Assignment: 0
Menu 413 Select Output Output Polarity: Type 4 (Open 1 Shot Low)
Menu 414 Select Output Set Time Parameter: 2 Seconds
Menu 415 Select Output : Output Options: Turn All Off
If using Keyfob Function 2, go to MENU 622 and turn off Option 8 (Keyfob Part Arm) function
