SMART RF Keyfob RF110

Modified on Fri, 13 Mar, 2020 at 2:06 PM

Each of the 5 buttons can be programmed with two independent functions:

- a single press (button 1,2,3,4,5);

- hold down for 2 seconds (button 6,7,8,9,10).

Button 1 default function	Arm
Button 2 default function	Disarm
Button 3 default function	Part1 Arm
Button 4 default function	Part2 Arm
Button 5 default function	Trigger Onboard Relay
Button 6 default function	Disabled
Button 7 default function	Disabled
Button 8 default function	Disabled
Button 9 default function	Disabled
Button 10 default function	Disabled

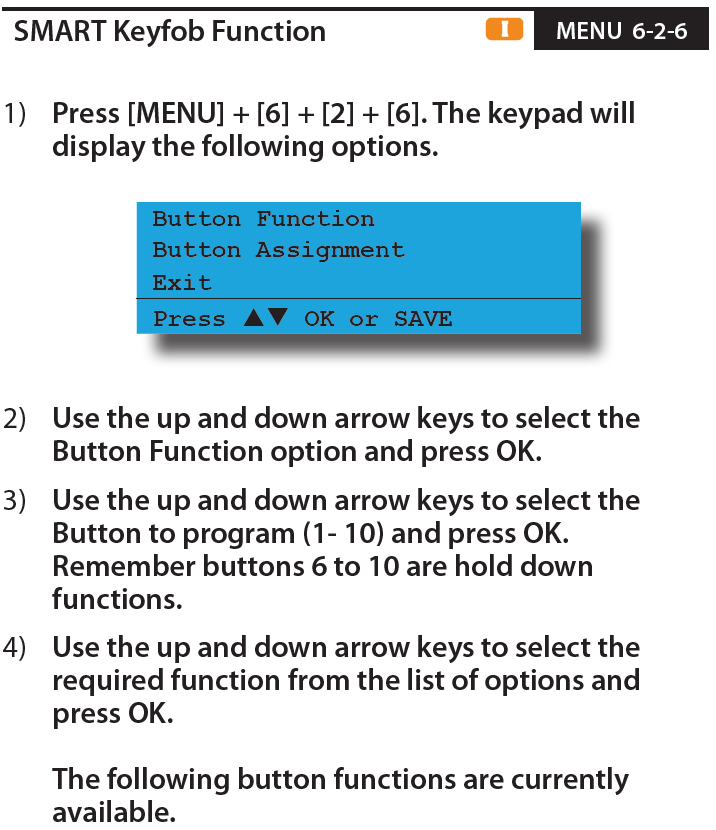

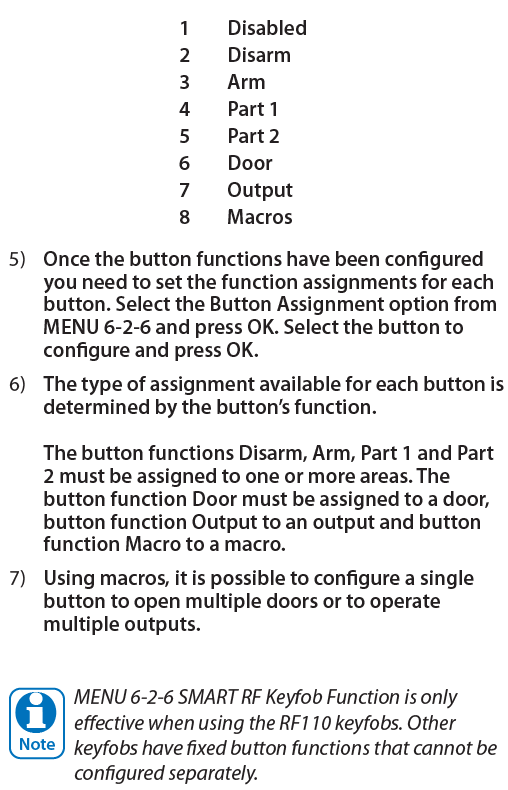

We can use keypad to program button functions

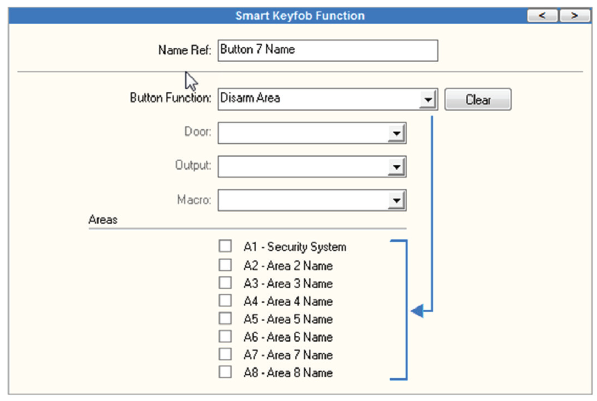

We can also use Solution Link to program the button functions:
