Using Remote Security Control App with the B9512G Panel.



The RSC App allows control of any B9512G Control Panel from an Android or IOS Phone.

We must build a Remote Certificate using the RPS software.

  • We must build a certificate for use locally (on the local network)
  • We must build a certificate for use outside the local network (access via mobile network)

You will need to build 2 x RPS Profiles for the panel.

You would probably wish to call them

  • (Customer Site Name)     Internal             When we setup the profile we use the Internal IP
  • (Customer Site Name)     External              When we setup the profile we use the External IP



Once we have created these 2 profiles in the RPS software , we need to ensure we have set the IP Address and Port Number settings under the Panel Data View   then Network Tab.

Right Click on Panel profile and select   Open Panel Data-View

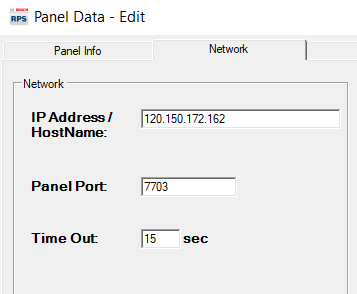

EXTERNAL PROFILE

You must then select the NETWORK TAB    then click on EDIT

You must set the correct IP Address and Port for the network the panel is using.

For this profile, this would be the EXTERNAL IP Address.

We must do this for BOTH profiles we have created.

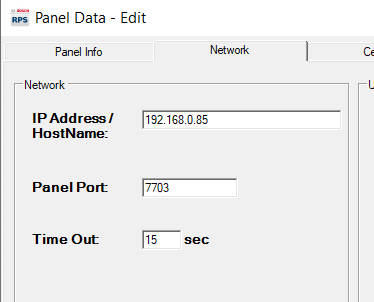

INTERNAL PROFILE

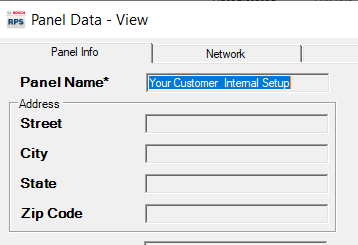

Right Click on Panel profile and select   Open Panel Data-View



You must then select the NETWORK TAB    then click on EDIT



You must set the correct IP Address and Port for the network the panel is using.

For this profile, this would be the INTERNAL IP Address.

We then need to create the Remote profile for each Panel Profile we have created.

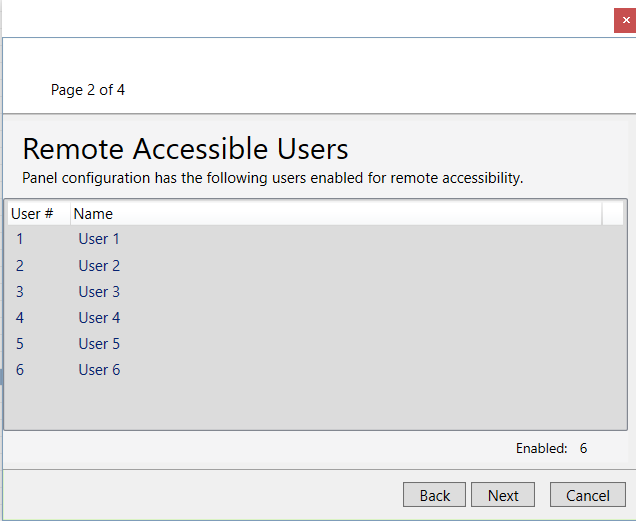

In the RPS software , Right Click on the panel profile and Select Build Remote Access Profile

Follow the steps:















You must do this for each profile and then import into the RSC App.



  • If your phone is working on Mobile data, it will use the EXTERNAL profile to allow connection.



  • If you are within range and have the local wifi connected to your phone it will work on the INTERNAL profile.
