A-Link Plus - Network Connect(TCP/IP SSL)

A-Link Plus software can support Direct Connect, Modem Connect, Network Connect(Cloud) and Network Connect(TCP/IP SSL).

This article will introduce how to use "Network Connect(TCP/IP SSL)" connection method on Bosch Solution 2000/3000 using A-Link Plus.

Prerequisite: please make sure your laptop is within the same Network as your IP Module.

(1) Click "Link" -> set Communication Model to "Network Connect(TCP/IP SSL)":

(2) Click "Customer Information" -> click "Search":

(3) Click "Start":

(4) You may see one or more B420/B426 Modules in the local Network:

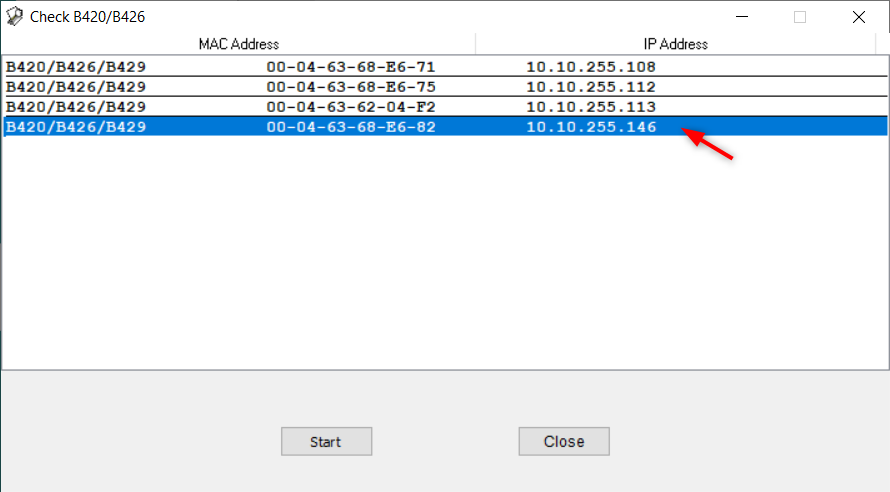

(5) Search for the MAC address for your IP Module then keep note of the IP Address for your IP Module:

(6) Close the Dialogue:

(7) Type in the IP Address for your IP Module:

(8) "Save" your changes:

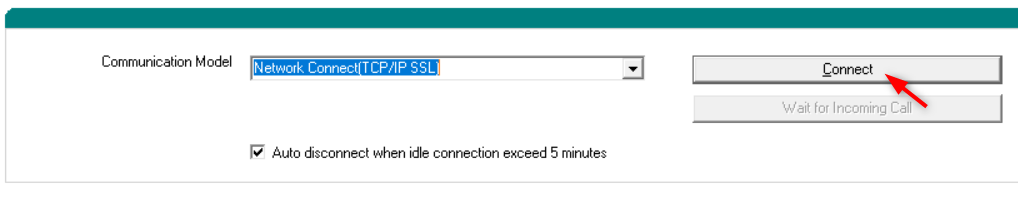

(9) Click "Link" -> click "Connect":

(10) Once you connect to the panel, you can make the programming changes.
