The installation manual for this device is attached at the bottom of this article.

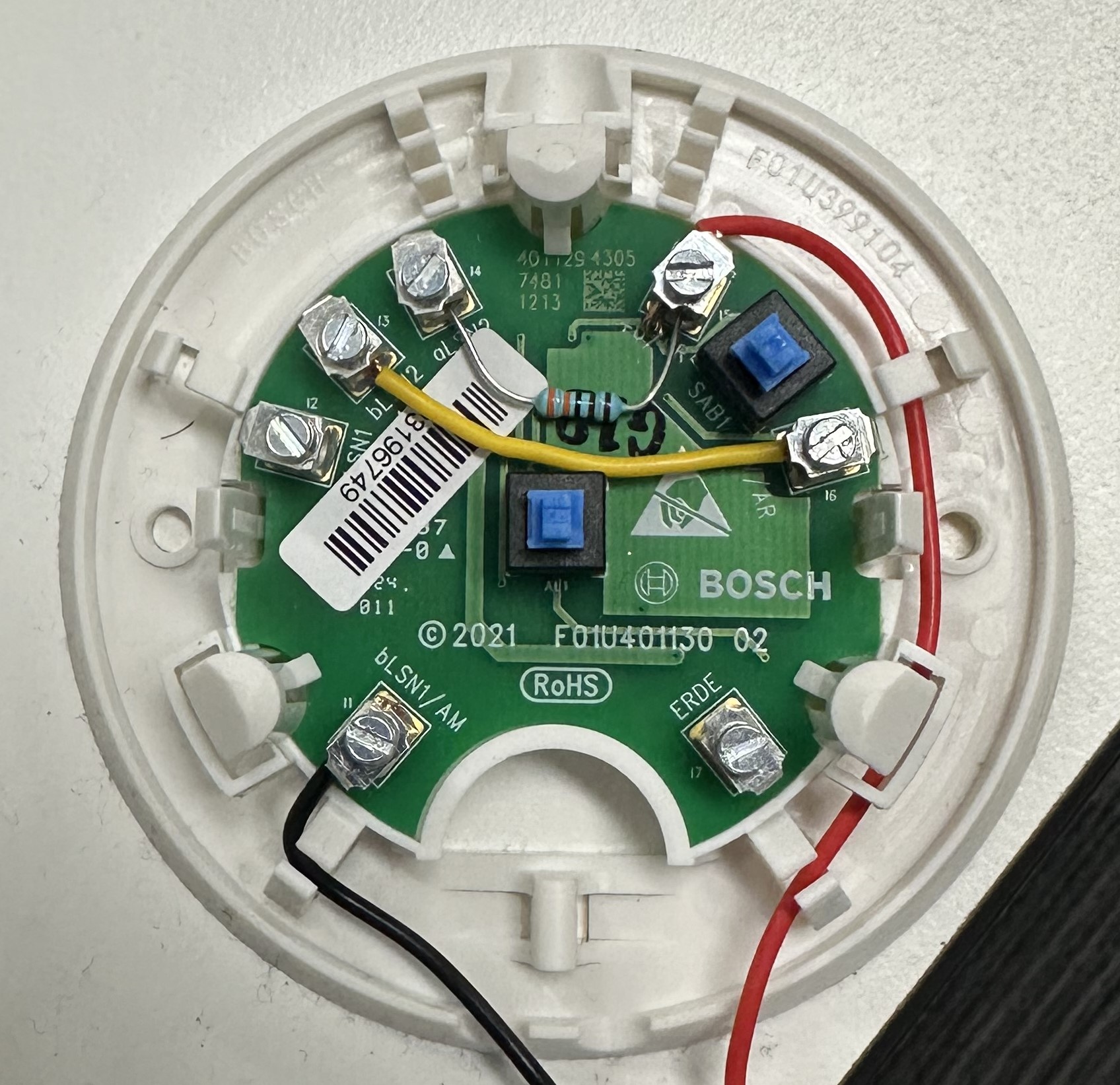

Below is a photo of a standard wiring setup for this device. Please note:
- The red and black cables are NOT power cables (+12V/GND), they are the alarm circuit cables and would connect to Z1/GND on a 2000/3000 for example.
- If the tamper switch (top right in photo) is not pressed, the zone will never seal on the panel. When testing the zone with the case open, ensure this is pressed for correct operation of the panic button switch (middle switch)

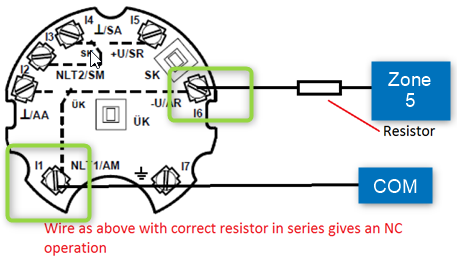

or alternative wiring:
