When Solutionlink is correctly installed and activated , we can use an CM910B Direct Link cable to connect to a panel.

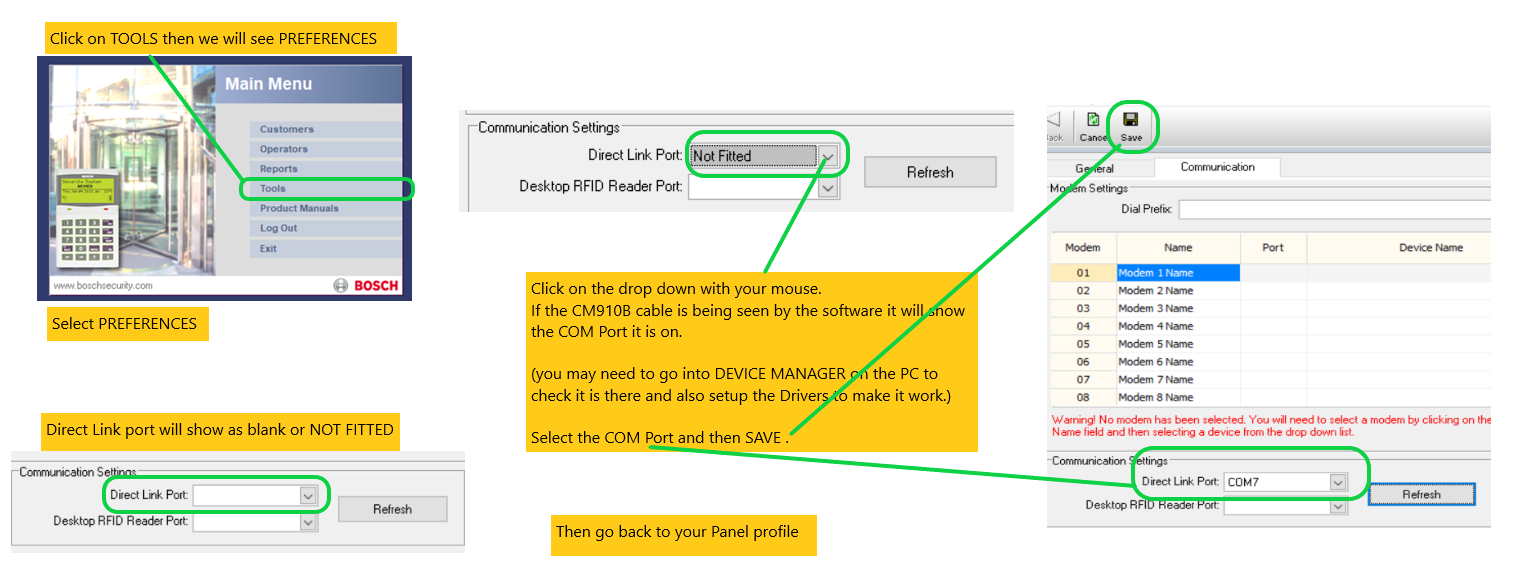

We must ensure that the correct COM Port is set in the software.
We do this under TOOLS then PREFERENCES
We see the menu when we are logged in to the software.
Go Back to CUSTOMERS

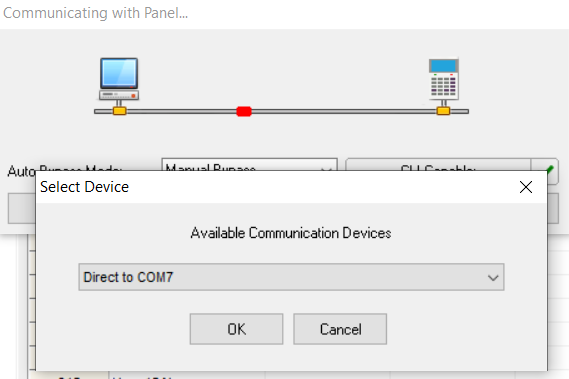

Open the panel profile and select CONNECT ensure you select the COM Port but don't press OK yet
To initiate a connection with the panel we must either now enter programming and go to
Menu 505 Direct Link Attempt or press and hold the Default button on the panel until we see the STATUS LED go to a slow flash.
Now we hit OK on the software.
We should then see the software connect and VERIFY the matching RAS PIN and then be able to UPLOAD/ DOWNLOAD and program the panel.
Ensure you SAVE if you make any changes.
Note that when you DOWNLOAD you are OVERWRITING the panel programming.
