A Day Alarm allows a combination of zones to be monitored when the system is disarmed. The indications are available using any of the programmable outputs including the codepad buzzer.

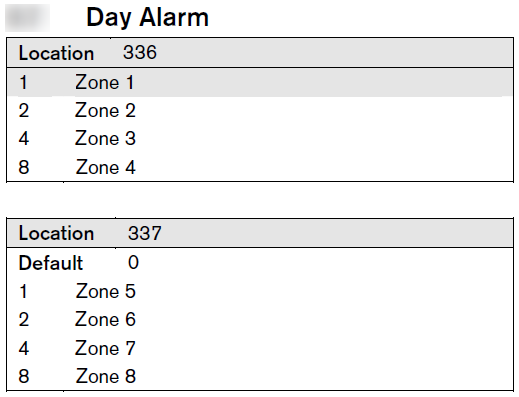

By default, Zone 1 is a Day Alarm Zone. You can add other Zones to be Day Alarm Zones as well by adding the value to Location 336 or 337.
Also you will need to change Output 6 (Default = Codepad – Entry/Exit + Day Alarm) programming:
| Output 6 | Location | Default Value | New Value |
| Event Code | 570 | 0 | 8 |
| Event Code | 571 | 12 | 7 |
| Polarity | 572 | 2 | 2 |
| Time Base | 573 | 1 | 1 |
| Time Base Multiplier | 574 | 0 | 0 |
| Time Base Multiplier | 575 | 1 | 5 |
Turn On/Off Day Alarm Mode:
- For Software Version 1.10 Only
Enter your four character master code followed by [7] and the [#] button (for example, [2 5 8 0 7 #]). Three beeps are heard when you turn the day alarm on. Two beeps are heard when you turn the day alarm off.
- For Software Version 1.20+
Press and hold button [4] until three beeps are heard. Day alarm turns on. All zones programmed for day alarm operation cause the codepad buzzer to beep during the disarmed state when activated. Two beeps are heard when you turn the Day alarm off.
