Using a keyfob and RSC + to control outputs

Modified on Thu, 31 Jan, 2019 at 9:51 AM

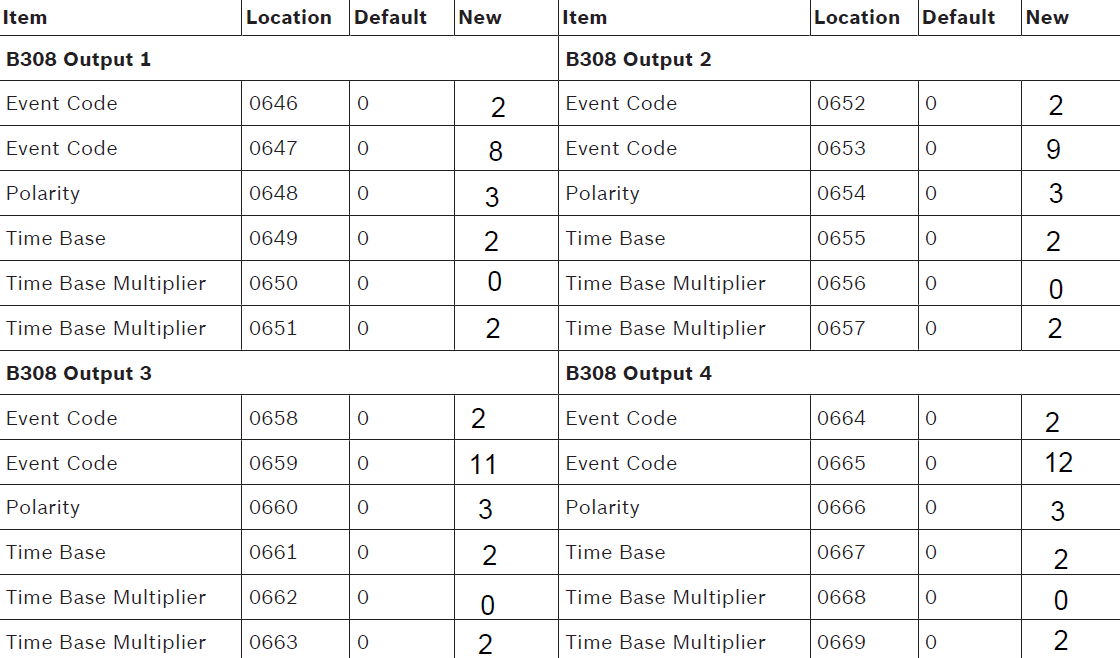

Output 1 and 2 are for the APP control.

Output 3 and 4 are for the keyfob.

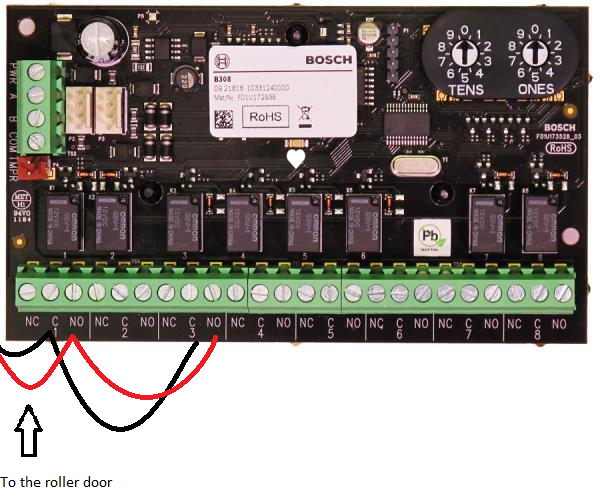

You will need to just bridge the physical outputs for example 1 and 3 and 2 and 4 if you only initially had 2 outputs
